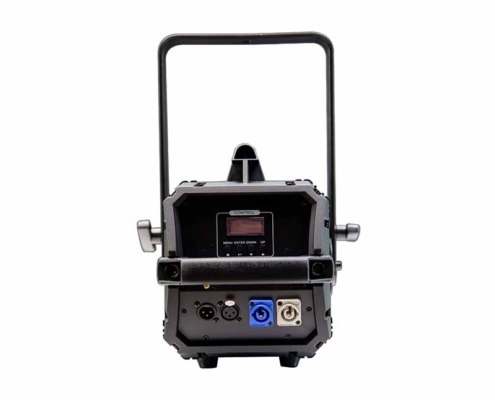

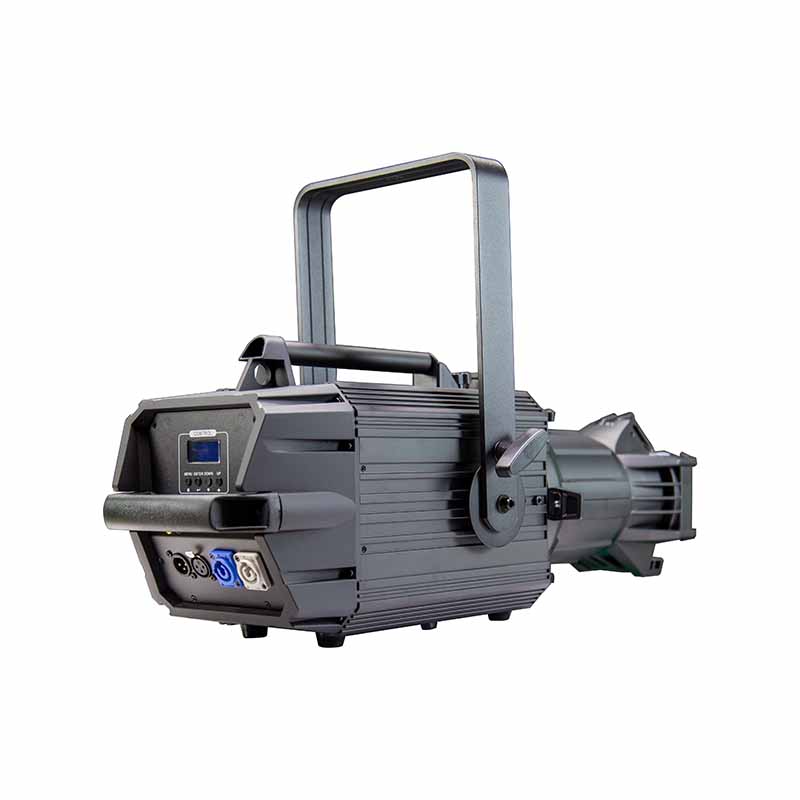

LED Prefocus Profile YS-400E

YS-400E-W YS-400E-WA

YS-400E-RGBALC

LED Prefocus Profile Models

  • YS-400E

    YS-400E-W

    YS-400E-WA

    YS-400E-RGBALC

  • YS-200E

    YS-200E-W

    YS-200E-WA

    YS-200E-RGBALC

  • YS-200FPF/YS-400FPF

    YS-200FPF-W

    YS-200FPF-WA

    YS-200FPF-RGBAL

    YS-400FPF-W

    YS-400FPF-WA

    YS-400FPF-RGBAL

  • YS-200S

    YS-200S-W

    YS-200S-WA

    YS-200S-RGBW

TECHNICAL SPECIFICATIONS

** Power Supply: AC100V~240V, 50/60Hz.

** Power Consumption: 400W

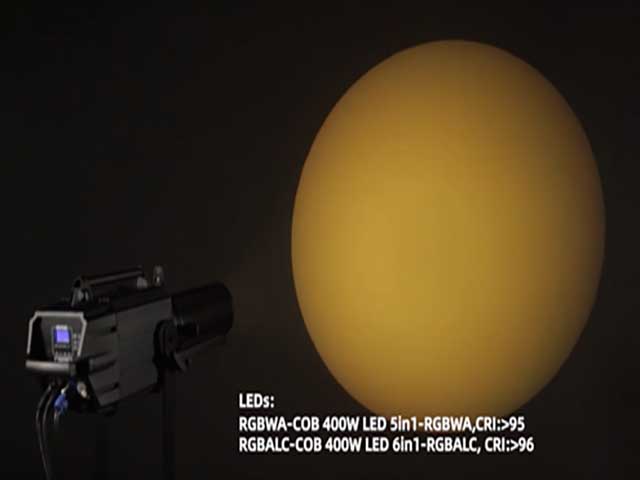

** LEDs:

YS-400E-W–COB 400W LED CCT3200/5600K, CRI: > 95

YS-400E-WA–COB 400W LED 2in1-CCT3200/5600K, CRI: > 95

YS-400E-RGBWA–COB 400W LED 5in1RGBWA, CRI: > 95

YS-400E-RGBALC–COB 400W LED 6in1RGBAL, CRI: > 95

** Beam Angle: 19°,26°,36°,50°

** Cooling System: Entire housing as a heat sink+Fan

** Control : LCD display

** Control Mode: RDM; DMX512; HSIC; Master/Slave; Stand-alone

** Electronic Dimmer: 0-100% linear dimmer; 4 selectable dimming curves

** PWM Dimming Frequency Adjust: (1200Hz ~ 20000hz )

** Color Calibration System (CCS) to correct the color of each lamp.

So as to solve the problem of LED color output inconsistent

** Environment Temperatures: -20°C ~ 40°C (-4°F ~ 104°F)

** Dimensions: L 65.7 x H 25.5 x W 28.6 cm

** Weight: 12kgs

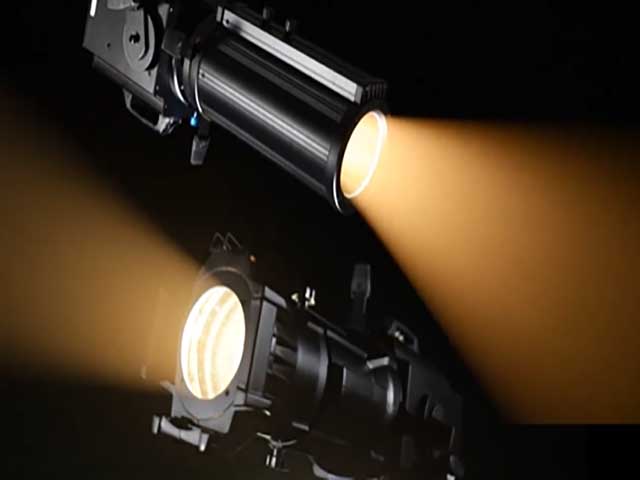

Light up

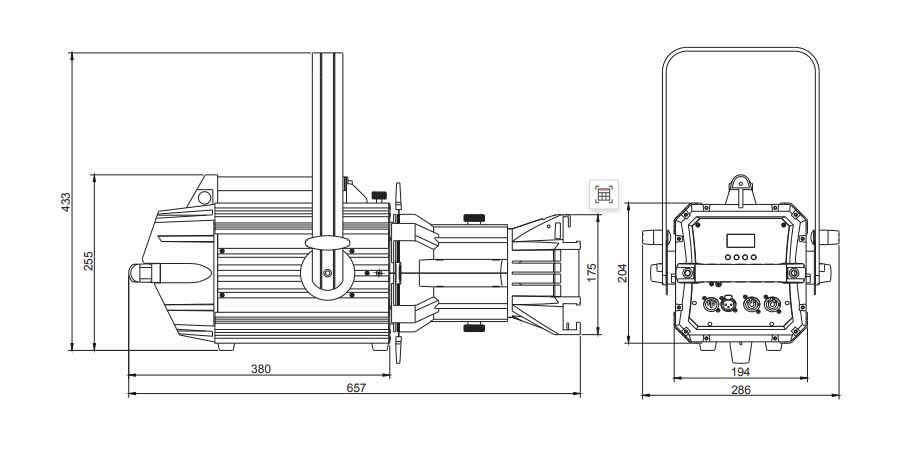

Dimensions mm:

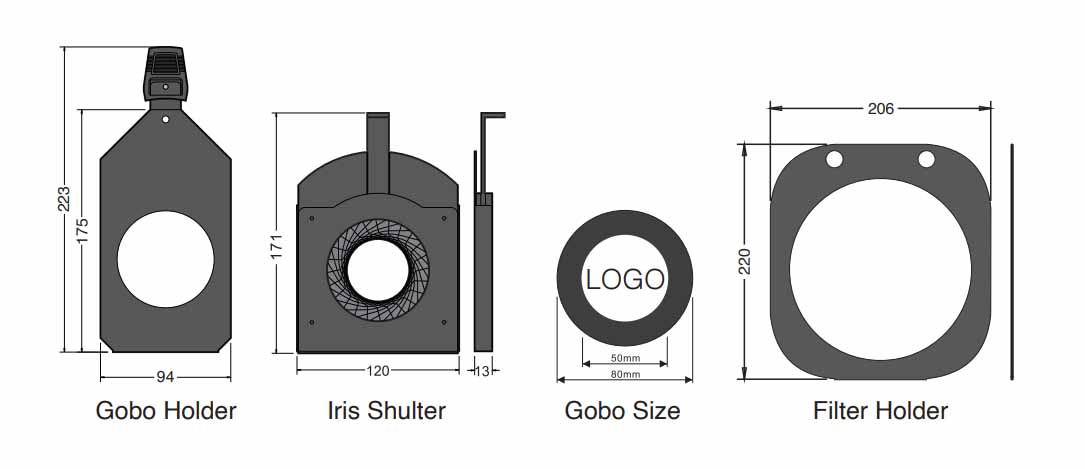

ACCESSORIES:
