LED Prefocus Profile YS-200/400FPF

YS-200FPF-W YS-200FPF-WA YS-200FPF-RGBAL

YS-400FPF-W YS-400FPF-WA YS-400FPF-RGBAL

LED Prefocus Profile Models

  • YS-400E

    YS-400E-W

    YS-400E-WA

    YS-400E-RGBALC

  • YS-200E

    YS-200E-W

    YS-200E-WA

    YS-200E-RGBALC

  • YS-200FPF/YS-400FPF

    YS-200FPF-W

    YS-200FPF-WA

    YS-200FPF-RGBAL

    YS-400FPF-W

    YS-400FPF-WA

    YS-400FPF-RGBAL

  • YS-200S

    YS-200S-W

    YS-200S-WA

    YS-200S-RGBW

TECHNICAL SPECIFICATIONS

** Power Supply: AC100V~240V, 50/60Hz.

** Power Consumption: 200W/400W

** LEDs:

YS-200FPF-W–COB 200W LED CCT3200K/5600K, CRI: > 95

YS-200FPF-WA–COB 200W LED 2in1-CCT3200/5600K, CRI: > 95

YS-200FPF-RGBWA–COB 200W LED 5in1RGBWA, CRI: > 95

YS-400FPF-W–COB 400W LED CCT3200K/5600K, CRI: > 95

YS-400FPF-WA–COB 400W LED 2in1-CCT3200/5600K, CRI: > 95

YS-400FPF-RGBWA–COB 400W LED 5in1RGBWA, CRI: > 95

** Beam Angle: 19°,26°,36°,50°

** Cooling System: Entire housing as a heat sink+Fan

** Control : LCD display

** Control Mode: RDM; DMX512; HSIC; Master/Slave; Stand-alone

** Electronic Dimmer: 0-100% linear dimmer; 4 selectable dimming curves

** PWM Dimming Frequency Adjust: (1200Hz ~ 20000hz )

** Color Calibration System (CCS) to correct the color of each lamp.

So as to solve the problem of LED color output inconsistent

** Environment Temperatures: -20°C ~ 40°C (-4°F ~ 104°F)

** Dimensions: L 60.7 x H 21.3 x W 34 cm

** Weight: 13.4kgs

Light up

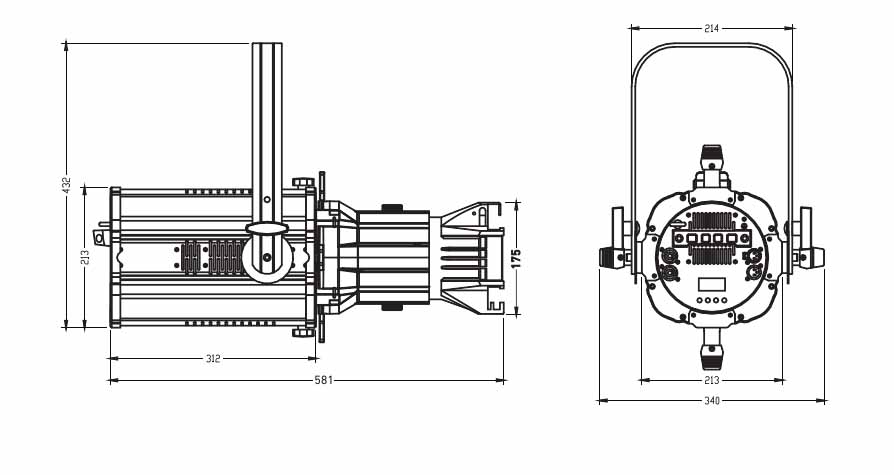

Dimensions mm:

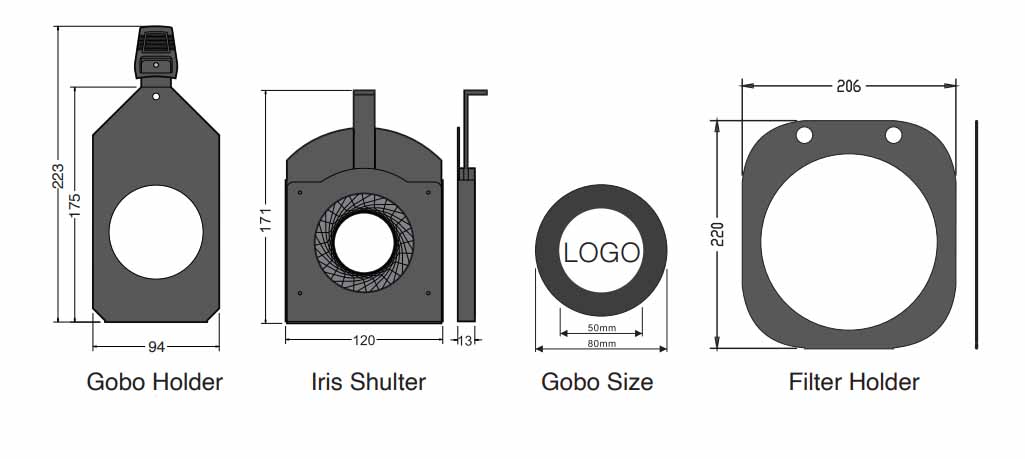

ACCESSORIES:
