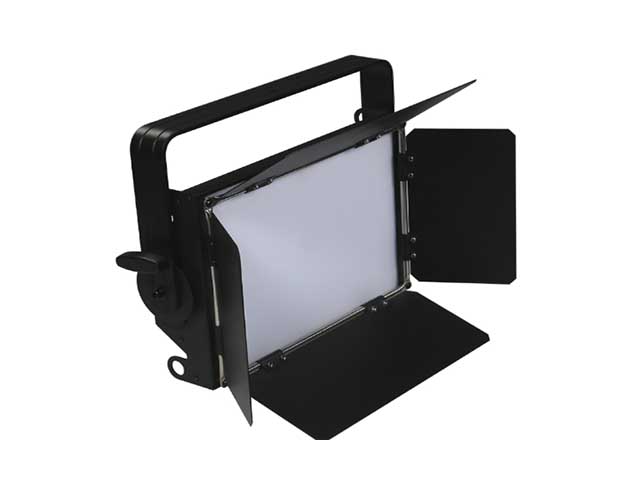

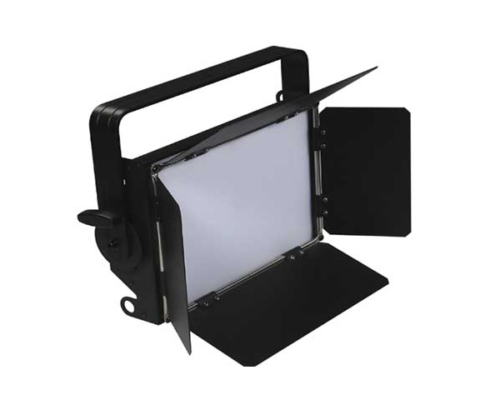

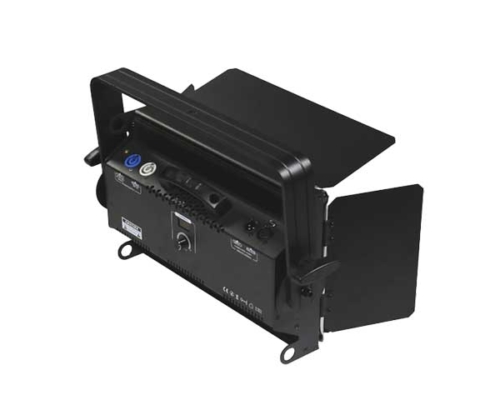

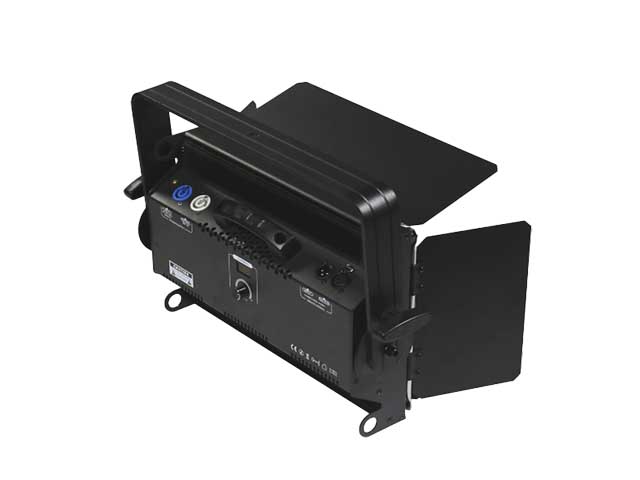

YS-192-W
YS-192-WA
YS-192-RGBW
TECHNICAL SPECIFICATIONS
** Power Supply: AC100V-240V, 50/60Hz.
** Power Consumption: 100W
** LEDs:
YS-192-W–0.5W x 192pcs LED CCT3200/5600K,CRI: > 93
YS-192-WA–0.5W x 192pcs LED 2in-CCT3200+5600K,CRI: > 93
YS-192-RGBW–0.5W x 192pcs LED4IN1,RGBW
** Beam Angle: 170°
** Cooling System: Entire housing as a heat sink
** Control : TFT display
** Control Mode: RDM;HSIC; DMX512; Master/Slave; Stand-alone
** Electronic Dimmer: 0-100% linear dimmer; 4 selectable dimming curves
** PWM Dimming Frequency Adjust: (1200Hz ~ 20000hz)
** Color calibration System (CCS) to correct the color of each lamp. So as to solve the problem of LED color output inconsistent.
** Environment Temperatures: -20°C ~ 40°C (-4°F ~ 104°F)
** Dimensions: L 56.6 x H 26 x W 7.6 cm
** Weight: 4.7kgs
Light up

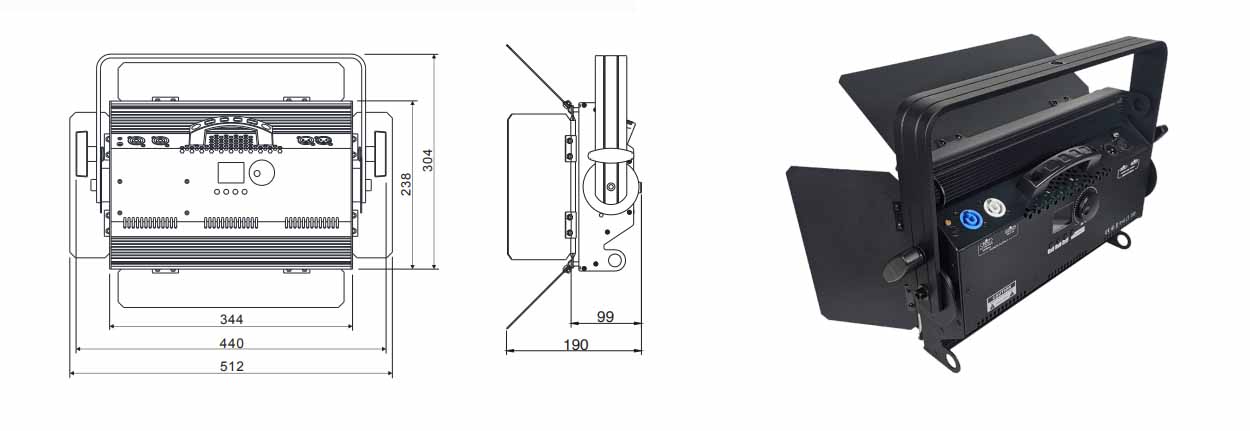

Dimensions mm:
