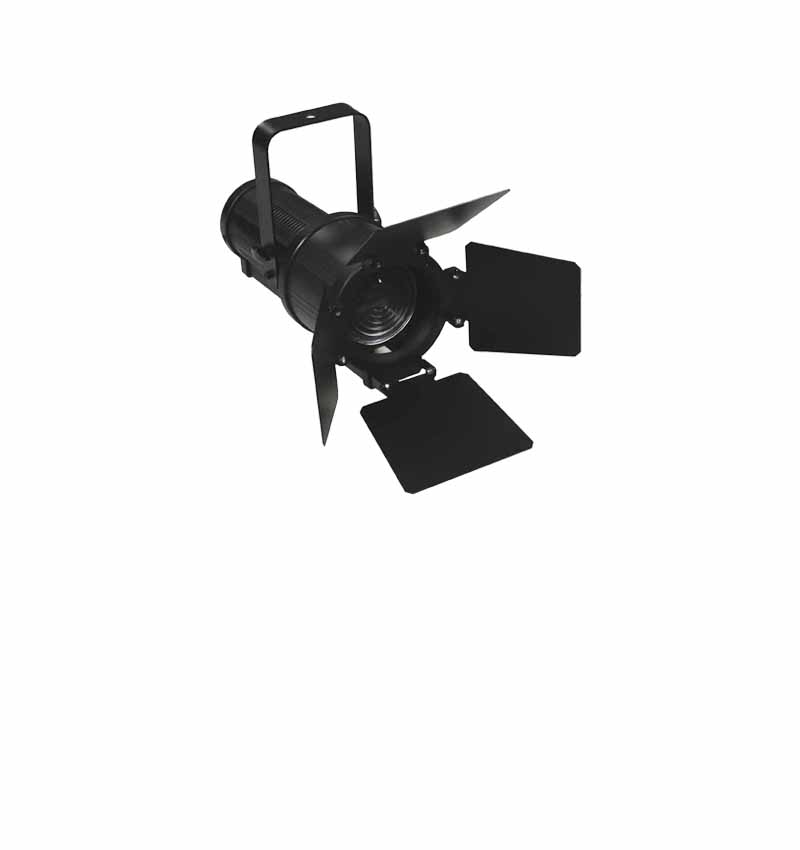

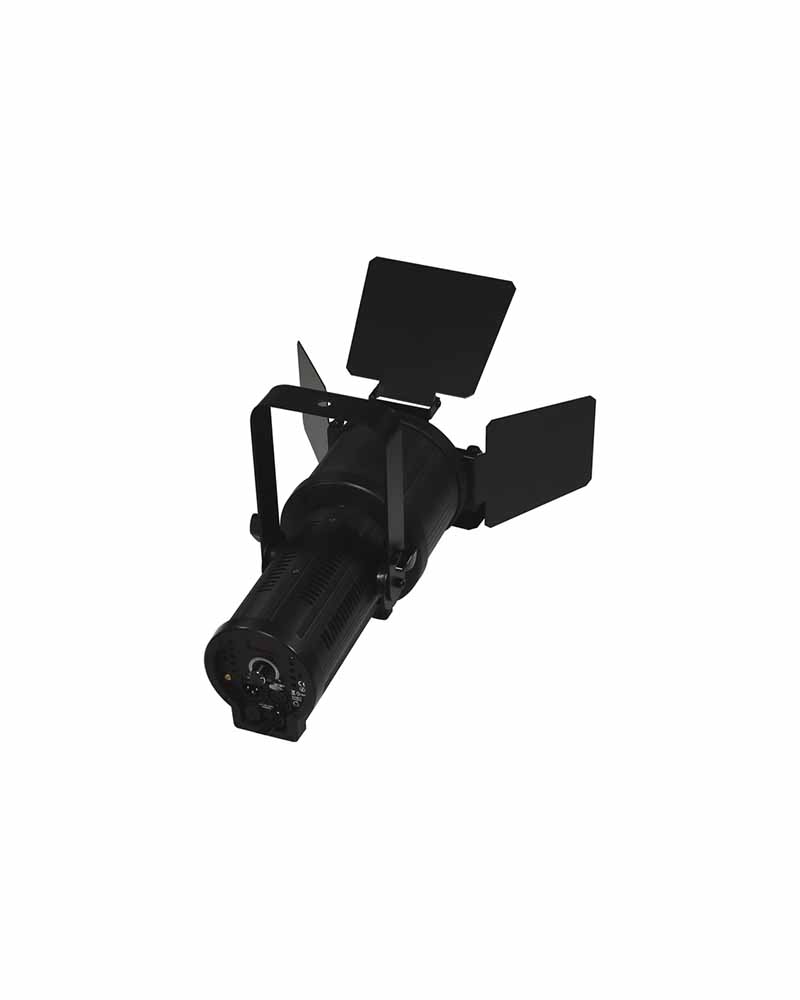

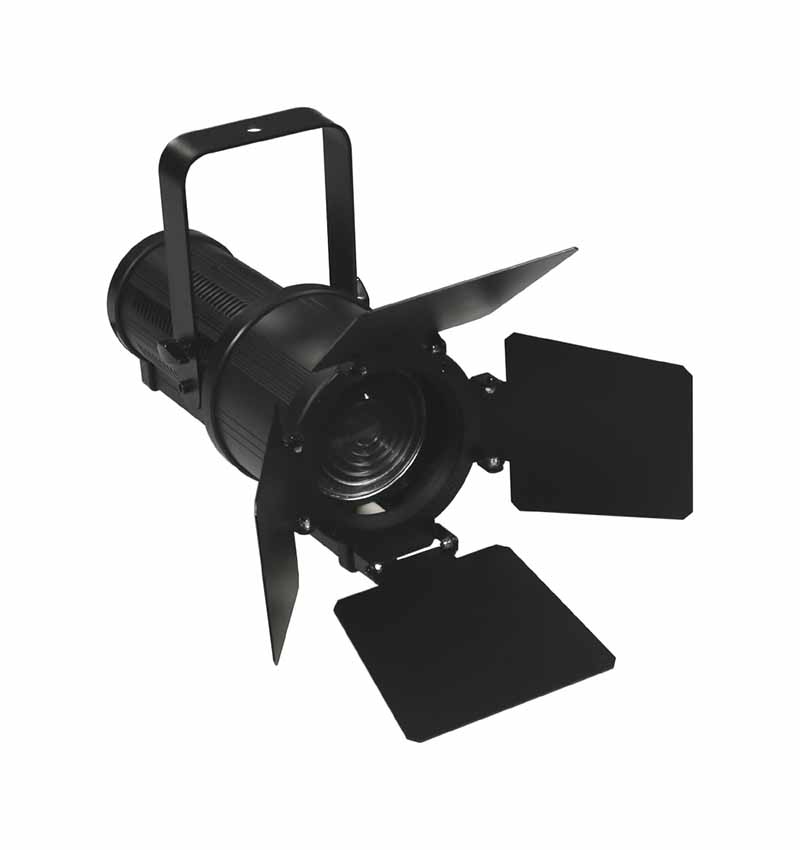

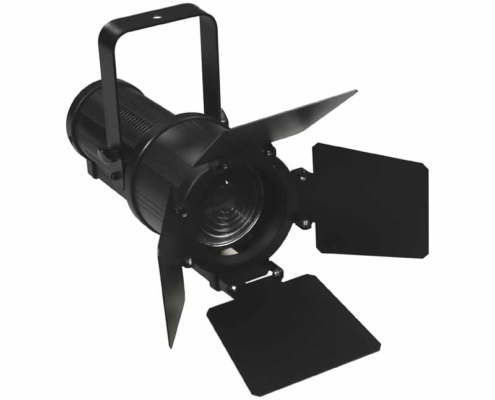

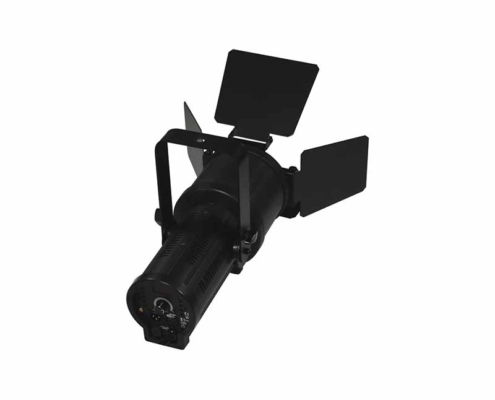

LED Mini Manual-Zoom Fresnel

YS-60STL-W
YS-60STL-WW+CW

LED Fresnel Models

TECHNICAL SPECIFICATIONS

· Power Supply: AC100V~240V, 50/60Hz

·Power Consumption: 60W

· LEDs:

YS-60STL-W–COB 60W LED CCT3200/5600K, CRI: > 95

YS-60STL-WW+CW–COB 60W LED 2in1-CCT3200+5600K, CRI: > 95

· Cooling System: Entire housing as a heat sink + Fan · Control Panel: TFT display

· Control Mode: RDM; DMX512; Master/Slave; Stand-alone

· Electronic Dimmer: 0-100% linear dimmer; 4 selectable dimming curves

· PWM Dimming Frequency Adjust: (1200Hz ~ 20000hz)

· Environment Temperatures: -20°C ~ 40°C (-4°F ~ 104°F) · Dimensions: L34.8 x H15.5 x W14 cm

Light up

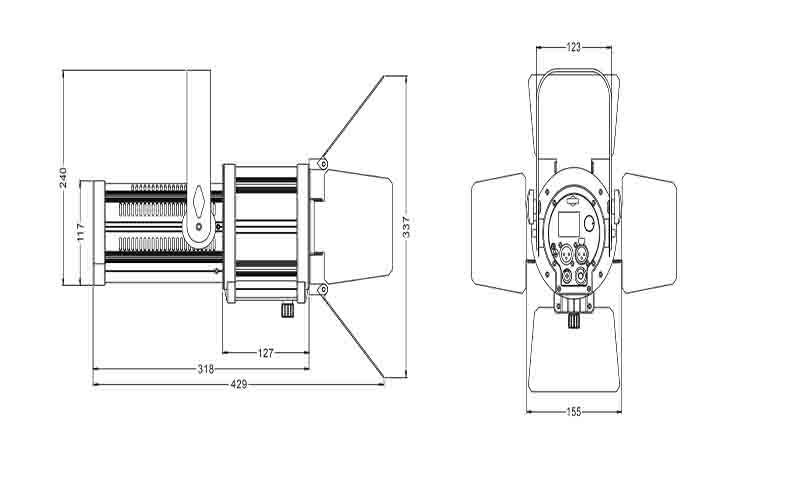

Dimensions mm:
